Compression testing machine 3000 kN to test cubes up to 200 mm side and cylinders up to Ø 160X320 mm.
Main Features
Max. vertical daylight between platens: 336 mm
Horizontal daylight between columns: 340 mm
Compression platens 510x320xh55 mm
High stiffness and heavy weight 4 columns frame (german-style).
Calibration accuracy: Class 1
Max. ram travel 55 mm approx.
Power supply: 230V 1ph 50Hz 750W
Dimensions: 900x600x1500 mm approx.
Weight: 1150...1220 kg

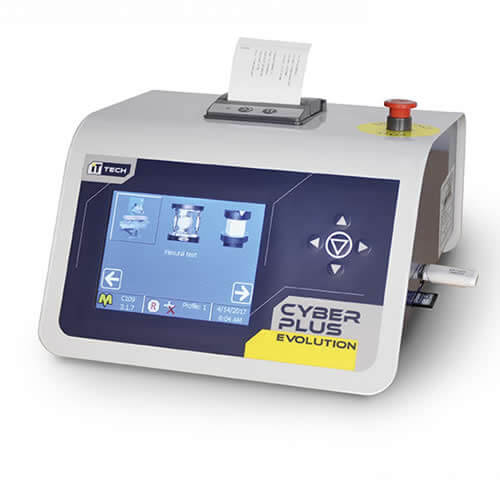

Control Unit
Internet direct connection for remote assistance
Windows operating system like a standard PC. Touch-Screen color display, ¼ VGA
Qwerty Touch-Screen virtual alpha-numerical keyboard, user-friendly
International settings and unlimited language selection
Traditional directional key pad with 5 arrow-keys for standard use or when wearing gloves
Compression Test. Visualization of the load/time graph in real time
Easy and straightforward selection of the tests (compression)
Selection examples, Elastic Modulus
Automatic pace rate up to failure to avoid specimen’s crumbling according to ASTM C39 Specification.
Unlimited memory storage with:
2 USB-Host ports* for PC, 1 SD card slot* (*memory hardware not included)
Calibration menu of a load channel. Easy set up of the calibration channel
Simple and user-friendly functional channel configuration. 8 analog inputs for connecting up to 8 load cells or transducers
Endless number of test combinations and profile calibrations
On board graphic printer
Laser printer for graphs and certificates with direct connection via USB.
Configuration menu of a load channel. Rapid channel configuration
RS232 for PC connection only upon customer request LAN connection to internet
High technology and high performance hardware
- More intuitive interface which simplifies the use of the machine (test begins after a few simple inputs)
- Greater calculation ability and data display (on board charts and graphic print-outs)
- High management capacity for the multilingual framework and international settings (date and time, decimal units, unit of measure).
- Elastic software which allows the installation of new tests when desired.
- Profile configuration manager
- Configuration and calibration supervision of the analog channel
- Alarms manager
- Ethernet parameters configuration
- International settings configuration
- Hardware diagnosis functions
- Functions for the software updates and licenses
- Execution of tests through parameters set up customization
- Several levels of protection (passwords) to prevent the accessibility to the configuration menus by unauthorized staff.
Accessories
C127N GRAPHIC PRINTER on thermo-paper on board for digital models
C100 SPLITTING TENSILE test device for cylinders. EN 12390-6, ASTM C496

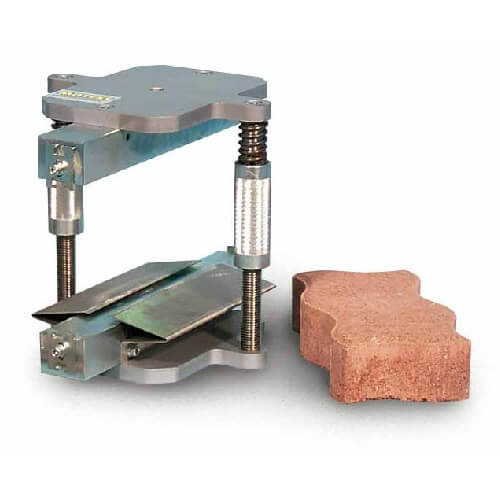

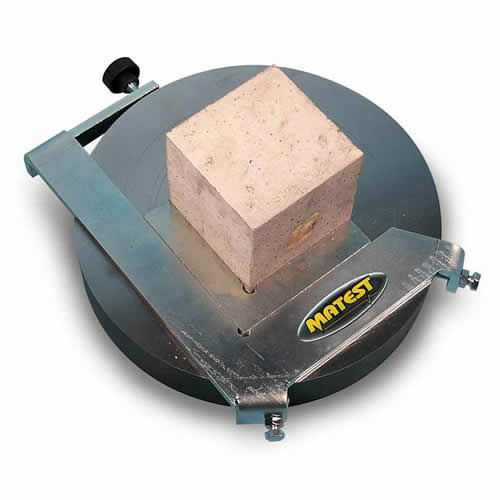

C103 SPLITTING TENSILE test device for self blocking pavers and cubes. EN 1338, 12390-6.

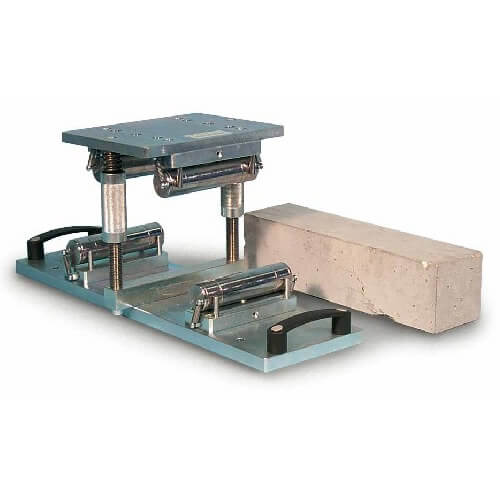

C106 FLEXURAL TEST DEVICE for concrete beams. EN 12390-5, ASTM C78, C293, AASHTO T97
C107 COMPRESSION DEVICE to test cement specimens 40.1x40 mm EN 196, ASTM C349

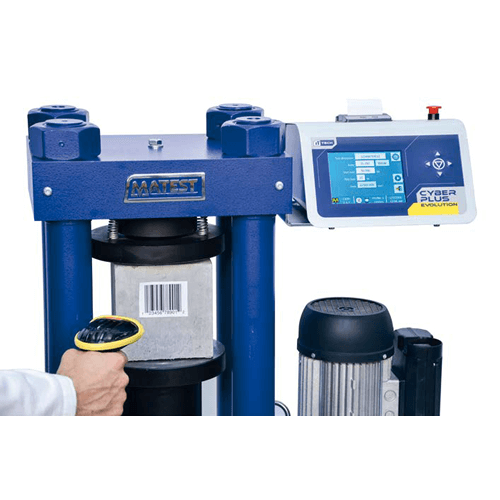

C099-01 BARCODE SCANNER, This instrument allows specimen file and identification by barcodes reading.
It can be connected cyber-plus / servo-plus control panels by USB, to automatically register specimen code and add it as a description of the test for all tests done with compression and flexure machines. Supplied complete with USB cable.
Note: Optional: High stiffness and heavy weight 4 columns frame
