Standards: BS 1881:204, DIN 1045
Used for determining the presence, position, direction, depth and diameter of steel reinforcement bars in concrete structures.

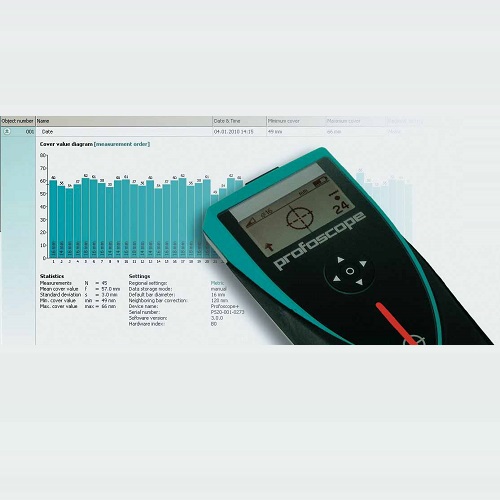

Versatile, fully-integrated rebar detector and cover meter with a unique real-time rebar display allowing the user to actually SEE the location of the rebar beneath the concrete surface to a maximum deep of 180 mm.
This is coupled with rebar-proximity indicators and optical and acoustical locating aids.
Rebar diameter can also be estimated within the specified testing range.
The Profoscope combines these unique features in a compact, light device that allows the user to operate this rebar detector with one hand making the task of locating rebars a simple and efficient process.
An intuitive user interface makes rebar detection easy.
Technical Specifications
- Visual indication of rebars in close proximity.
- Ability to identify the mid-point between rebars as well as the orientation of rebars.
- Optical and acoustical indication of rebar location and minimum cover alert.
- Neighboring bar correction.
- Cordless and single handed operation.
- Icon-based language independent menus.
- Same features of mod. C403-01, but additionally offers the innovative memory function for automatic data acquisition, by eliminating the manual measurements of a test series, saving time and unnecessary source of errors.
