Standards: C876, RILEM TC 154-EMC, DGZFP B3, SIA 2006, UNI 10174, JGJ/T 152, JSCE E 601
It is used to determine the corrosion of steel reinforcing bars in concrete structures.
This instrument is the direct successor to the Canin and it is the most advanced corrosion detection device in the market.
Consists in a non-destructive method to determine the corrosion of the reinforcement bars.
Same as C396N model, but with the accessories to detect corrosion and without the accessories to measure concrete cover and rebar location.

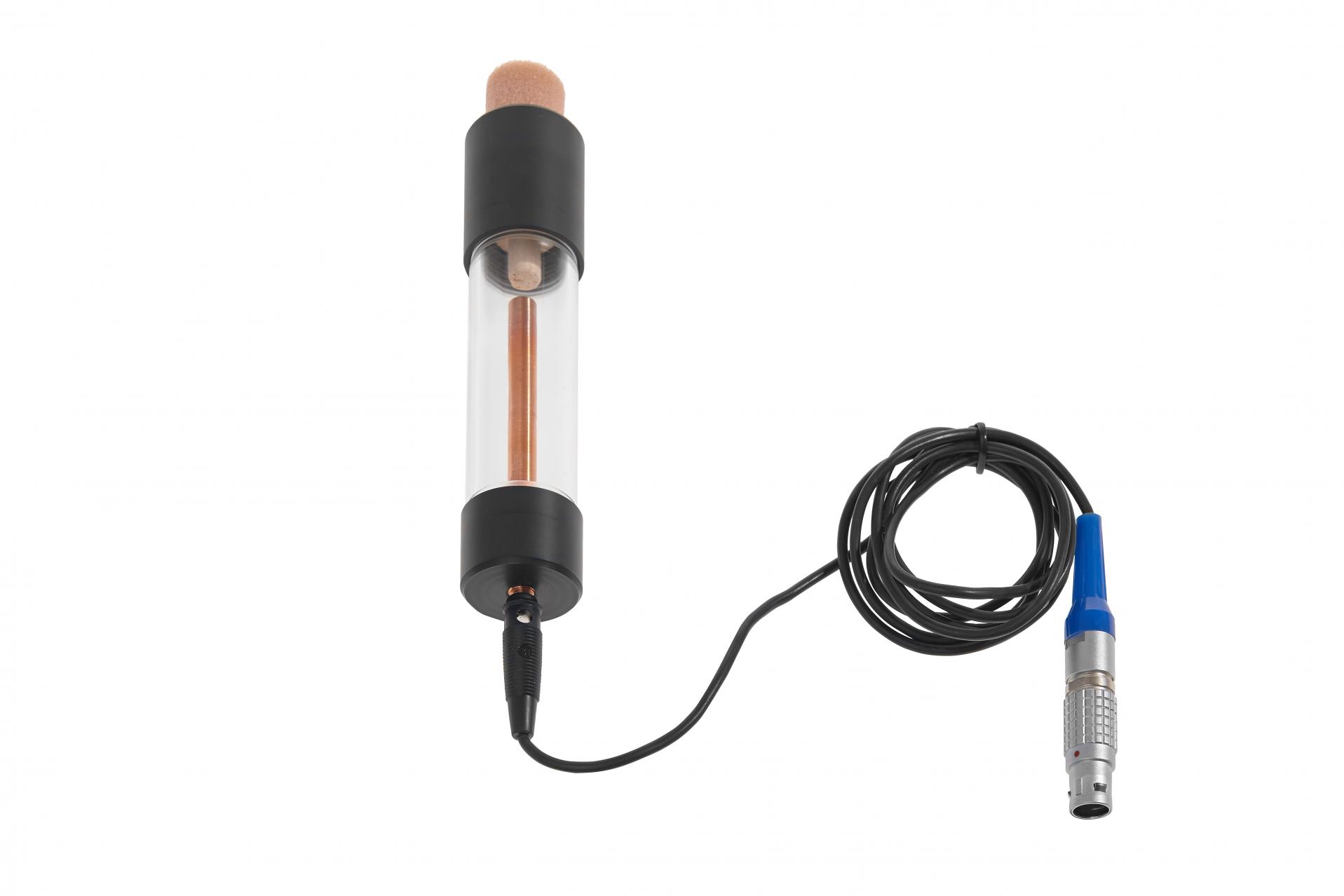

Supplied complete with rod electrode.
Features
Measuring wide areas over long distances
Visual assistance for speed and signal strength control
Settings directly accessible on the measurement screen
Graphical display of measured values
Change settings before and after storage
PM-Link software for downloading saved data to a PC for analysis and export to third party applications
Housing specially designed to be used on-site in harsh environments, including carrying strap, integrated stand and sunshield cover
Battery lifetime of ˃ 8h
High resolution color display
8 GB Flash memory
Dual core processor supporting diverse communication and peripheral interfaces
Display: 7" colour display 800x480 pixels
Voltage measuring range: -1000 to + 1000 mV
Voltage resolution: 1 mV
Impedance: 100 MΩ
Sampling rate: 900 Hz
Diameter Measuring Range: Up to 63 mm (2.5")
Diameter Measuring Accuracy: ± 1 bar size
Memory: Internal 8 GB Flash memory
Regional Settings: Metric and imperial units and multi-language supported
Battery: Lithium Polymer, 3.6 V, 14.0 Ah
Voltage: 12 V / 1.5 A
Weight (of display device) About 1'525 g (incl. Battery)
Operating Temperature: 0°C - 30°C (Charging*, running instrument),
0°C - 40°C (Charging, instrument is off)
-10°C - 50°C (Non-charging)
Humidity < 95 % RH, non condensing
IP Classification: IP54, universal probe IP67
Dimensions: 250x162x62 mm
Weight: 1600 g approx
