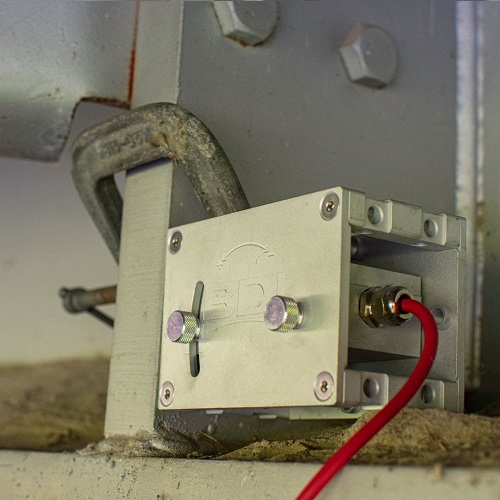

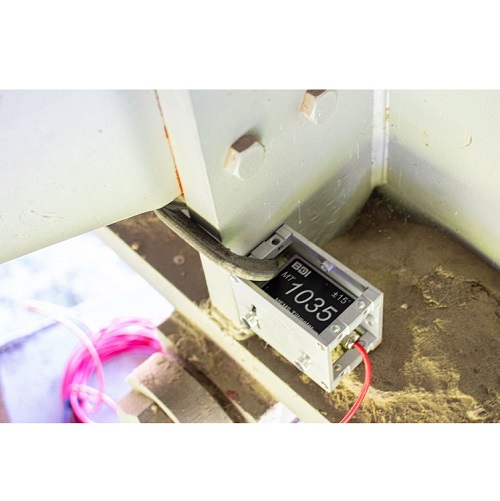

The T500 tiltmeter is an electrolytic fluid-based tilt sensor that can be used for precision rotation measurements, generally over a short period of time.
These units connect directly to our Structural Testing System, Structural Monitoring Systems, and are also compatible with most generic data acquisition systems.
The rugged aluminum housings provide both easy mounting and mechanical zero-adjustment capability.
Features
Simple & quick range adjustment
Mounting tabs for adhesive application
Measurement range from ±0.5° to ±60°
4 mounting configurations
Designed to exceed IP67
High accuracy
Sub-arc second resolution
Internal signal conditioning
Overload protection
Applications
Rotation in bridge slabs, beams, and piers due to live load
Retaining wall or abutment movement during construction
Rotation angle of tainter gates during operation
| MODEL |
T500-005 |
T500-030 |
T500-100 |
T500-600 |
| LINEAR RANGE (ARC DEGREES) |
±0.5 |
±3 |
±10 |
±60 |
| TOTAL RANGE (ARC DEGREES) |
±1 |
±6 |
±15 |
±80 |
| OUTPUT (mV/ARC SECOND) |
1 |
0.4 |
– |
– |
| OUTPUT (mV/ARC DEGREE) |
– |
– |
420 |
160 |
| RESOLUTION (ARC DEGREES) |
< 0.0001 |
< 0.0003 |
< 0.0005 |
< 0.001 |
| ACCURACY @ FULL SCALE (%FS) |
– |
< 8 |
< 5 |
< 3 |
| SETTLEMENT TIME (SECONDS) |
~1.1 |
~1.2 |
~0.75 |
~1.0 |
| EXCITATION VOLTAGE |
+5 to +15 Vdc |
| OUTPUT |
±2 Vdc |
| OPERATING TEMPERATURE |
-13 °F to 158 °F (-25 °C to 70 °C) |
| STORAGE TEMPERATURE |
-40 °F to 176 °F (-40 °C to 80 °C) |
| TEMP. COEFFICIENT OF SCALE (%/°C, TYP.) |
0.6 |
0.6 |
0.1 |
0.1 |
| HOUSING |
Machined 6061-Aluminum |
| CORROSION PROTECTION |
Hard Anodized Clear (MIL-A-8625 Type III) |
| WEATHER PROOFING |
Designed to exceed IP67 |
| DIMENSIONS |
4.25 x 2.6 x 3 in (108 x 66 x 76 mm) |
