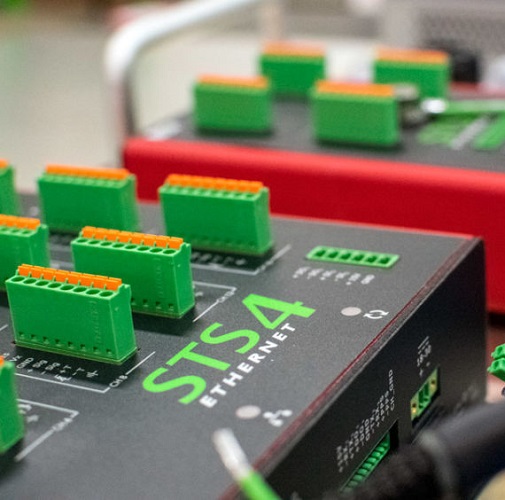

The industrial terminal input nodes have been designed for both laboratory and long-term monitoring applications. With 4 analog sensor inputs alongside and 4 thermistor inputs make these nodes ideal for collecting high-speed data and correcting for temperature at the same time throughout the monitoring application.
Features
No programming required!
Modular rugged design
Expandable up to 1,000 channels
Sample Rates up to 1000 Hz per channel
Quick-Connect terminal blocks
Accepts a large range of structural testing sensors
Variety of power options including DC & PoE
All channels are lightning/surge protected
Applications
Laboratory Testing
Structural Monitoring
General purpose data collection
Specifications
Measurement Types: Analog Single-ended or Differential
Analog Input Temperature Input: 3KΩ NTC Thermistor
Maximum Sample Rate: 1000 S/s
Analog Input: ~1 S/s (non user adjustable)
Programmable Gain Settings: 11
Analog to Digital Converter (ADC) 24-bit ADC (Sigma delta)
Inputs & Outputs
Input Channels: 4
Thermistor Inputs: 4
Serial communication: RS232/422/485
Digital I/O: Isolated Digital In (to 24V), 2x Digital Out
Voltage Output: +15 Vdc @ 200 mA
Memory
Internal MicroSD Memory: 8 GB
Excitation Voltages
Vx (programmable): +0 to +5 Vdc @ 20mA (per channel)
V+15: +15 Vdc @ 400 mA (combined)
Power
DC Supply: +24 Vdc @ 1.0 Amp
Power over Ethernet: +24 Vdc Passive PoE @ 0.5 Amp
Communication
Wireless: n/a
Ethernet: 10T-Base (TCP/IP)
Sensor Interface

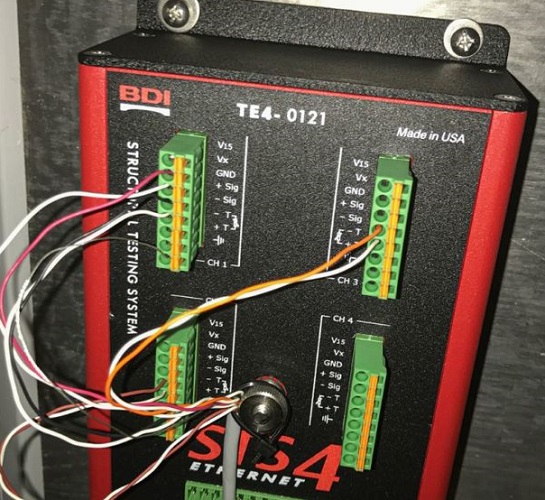

Connector: 8-pin spring loaded wire terminal
Intelliducer Support: No
Physical
Protection: Dustproof
Size (W x L x H) 4.2 x 7.5 x 2.5 in (107 x 191 x 63 mm)
Weight: 1.43 lb (650 g)
Operating Temperature: -40° to 185 °F (-40 to +85 °C)
