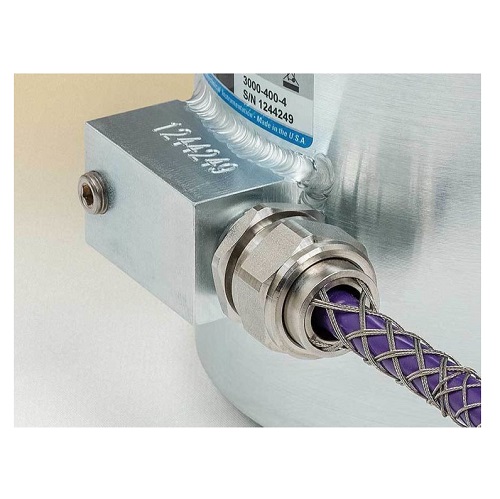

The Model 3000 Load Cell is made from an annulus of high-strength steel or aluminum, with electrical resistance strain gauges in a Wheatstone Bridge configuration.
The load cell is designed primarily for use on tiebacks and rockbolts, although they may be used during pile load tests and for monitoring loads in crosslot struts and tunnel supports, etc.
In most cases, the load cells are used in conjunction with a hydraulic jack and bearing plates.
Features
Wheatstone bridge internal strain gage configuration
Internally compensates for eccentric loads
Wide range of load capacities
Captures static and dynamic loads
Excellent stability for long-term measurements
Waterproof
Stainless steel construction
Overload protection
Applications
Cable stay bridges
Pile load tests
Threaded anchors
Post-tensioning
Specifications
Rated Capacities: 100 to 10,000 kN
Over Range: 150% F.S
Resolution: 0.025% F.S.
Accuracy: ±0.5% F.S.
Temperature Range: −20°C to +80°C

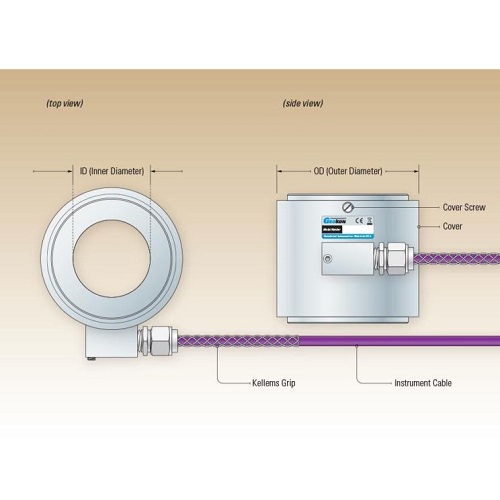

Internal Diameters: solid, 25, 50, 75, 100, 125, 150, 200, 250 mm
