The ST350 Strain Transducer has been designed to quickly and accurately measure strain on a variety of structures in harsh field environments.
This 350Ω full Wheatstone bridge strain transducer is very accurate, rugged, and waterproof.

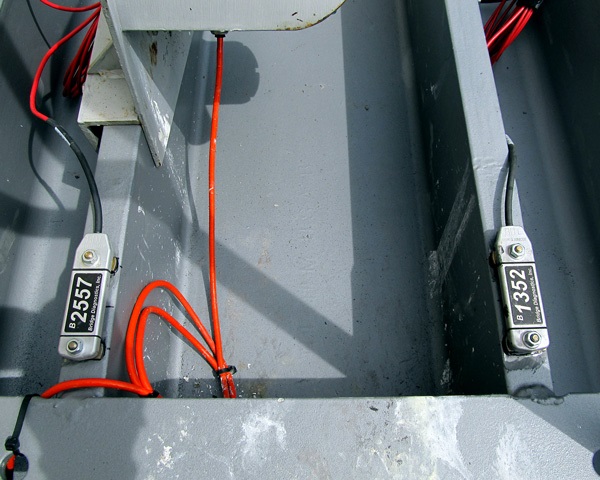

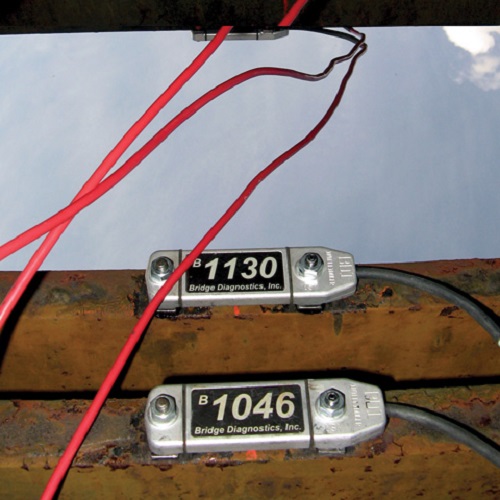

Providing roughly 3.5 times the output of a typical foil strain gage, these reusable sensors are ideal for measuring live-load strain on structures and can be installed within minutes in all weather conditions.
Over 30 years of experience have proven these units to be the gold standard for accurate field measurements.
Features
Cost-effective
Installs in 5 minutes or less
Reusable, lasts for >10 years
Waterproof to 20ft (6 m)
Industrial cable, custom lengths
Standard millivolt output
N.I.S.T traceable calibration
Applications
Steel
Pre-stress/post-tension concrete
Reinforced concrete
Timber
Fiber Reinforced Polymer (FRP)
Live-Load testing & monitoring
Laboratory testing
Fatigue monitoring
Tension rod forces
Specifications
| CIRCUIT: |
Full Wheatstone bridge with 4 active 350Ω strain gages |
| EXCITATION VOLTAGE: |
+1.0 to +10.0 Vdc |
| OUTPUT: |
mV level, ratiometric to Excitation Voltage |
| STRAIN RANGE |
±4,000 µε (Calibrated to ±2,000 µε) |
| TYPICAL SENSITIVITY |
~500 με/mVout/Vin |
| ACCURACY1 |
< ±1% |
| EFFECTIVE GAGE LENGTH |
3.0 in (76.2 mm) [Gage Extensions available for R/C structures] |
| HOUSING |
Machined 6061 Aluminum Alloy |
| CORROSION PROTECTION |
Hard Anodized Clear (MIL-A-8625 Type III) |
| WEATHER PROTECTION |
Designed to exceed IP67, optional 100 ft (30 m), waterproofing available |
| TEMPERATURE RATING |
-58° to +176 °F (-50° to +80 °C) |
