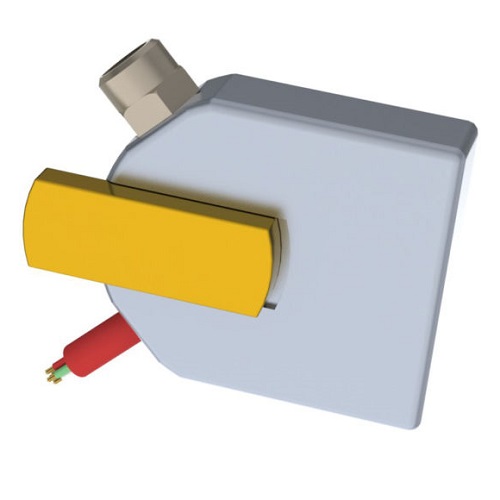

The completion modules allow for rugged input connection of your foil strain gages with custom length, integrated instrumentation cable output.
Available in both 120Ω and 350Ω configurations and standard millivolt output, these rugged re-usable completion modules significantly reduce field installation time and provide an improved signal to noise ratio.
Features
120Ω and 350Ω Gages
Designed to exceed IP67
Minimizes lead wire effects
Rugged M8 mating connector
Pre-wired leads

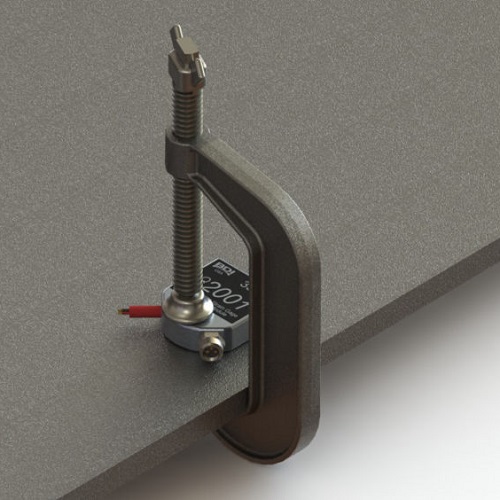

Various mounting options available
Industrial cable, custom lengths
Simple to use!
Integrated thermistor
Specifications
| MODEL |
CM120 |
CM350 |
| RESISTANCE |
120Ω |
350Ω |
| RESISTANCE ACCURACY |
±0.02% |
±0.02% |
| FOIL GAGE TYPE SUPPORTED |
3 Wire hookup Quarter Bridge Type I |
| |
3 Wire hookup Quarter Bridge Type II |
| |
3 or 4 wire hookup Half Bridge Tip I |
| |
3 or 4 wire hookup Half Bridge Tip II |
| EXCITATION VOLTAGE |
+1.0 to +10.0 Vdc |
| OUTPUT |
mV level, ratiometric to Excitation Voltage |
| HOUSING |
Machined 6061-Aluminum Alloy |
| CORROSION RESISTANCE |
Hard Anodized Clear (MIL -A-8625 Type III) |
| ENVIRONMENTAL |
Designed to exceed IP67 |
| OPERATING TEMPERATURE |
-49° to +176 °F (45° to +80 °C) |
